XS WIRELESS 2

Quick Guide

| Краткая инструкция | 快速指南 |

快速使用指南 | クイックガイド | 요약 설명서|

In the box

Setup

On/Off

Display

Volume

Mute

Battery

Low battery

XS WIRELESS 2

NT 12-5CW

SKM 865-XSW

SKM 835-XSW

EM-XSW 2

SK-XSW

ME 3-II

ME 2-2

CI 1-N

2 x AA

LR6 1.5 V

MZQ 1

XS WIRELES

XSW 2-

835

XSW 2-

865

XSW 2-

CI1

XSW 2-

ME2

XSW 2-

ME3

Vocal Sets

Instrument

Set

Lavalier

Set

Headmic

Set

XS WIRELESS

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 2 CH. 12

615.375

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 1 CH. 12

606.500

~ 10 h

~ 7 h

~ 3 h

Low Batt

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 1 CH. 0

606.500

XS WIRELESS

Bank Ch.

1 1

606.500

MHz

ME 3-II

ME 2-2

CI 1-N

6.3 mm

XLR-3

XS WIRELESS

1s on

3s off

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 2 CH. 12

615.375

XS WIRELESS

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 1 CH. 01

606.500

Bank Ch.

1 1

606.500

MHz

ANT AB

TUNE

PRESET

SCAN

SYNC

RF AF

B. 1 CH. 01

606.500

Radio

frequency

level

Audio level

Frequency

Diversity

Sync

Bank

Battery

Channel

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 1 CH. 01

606.500

ANT

TUNE

PRESET

SCAN

SYNC

RF AF

B. 2 CH. 12

615.375

XS WIRELESS

KOR

Audio on

Audio off

Источник

User Manual for Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule

Click to enlarge the picture

Contents of the user manual for the Sennheiser XSW 2-835-A Wireless Handheld Microphone

Product category: Wireless Systems Sennheiser
Brand: Sennheiser
Description and content of package
Technical information and basic settings
Frequently asked questions – FAQ
Troubleshooting (does not switch on, does not respond, error message, what do I do if…)
Authorized service for Sennheiser Wireless Systems

User manual for the Sennheiser XSW 2-835-A Wireless Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sennheiser product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sennheiser user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sennheiser product will considerably shorten its lifespan!

Product description

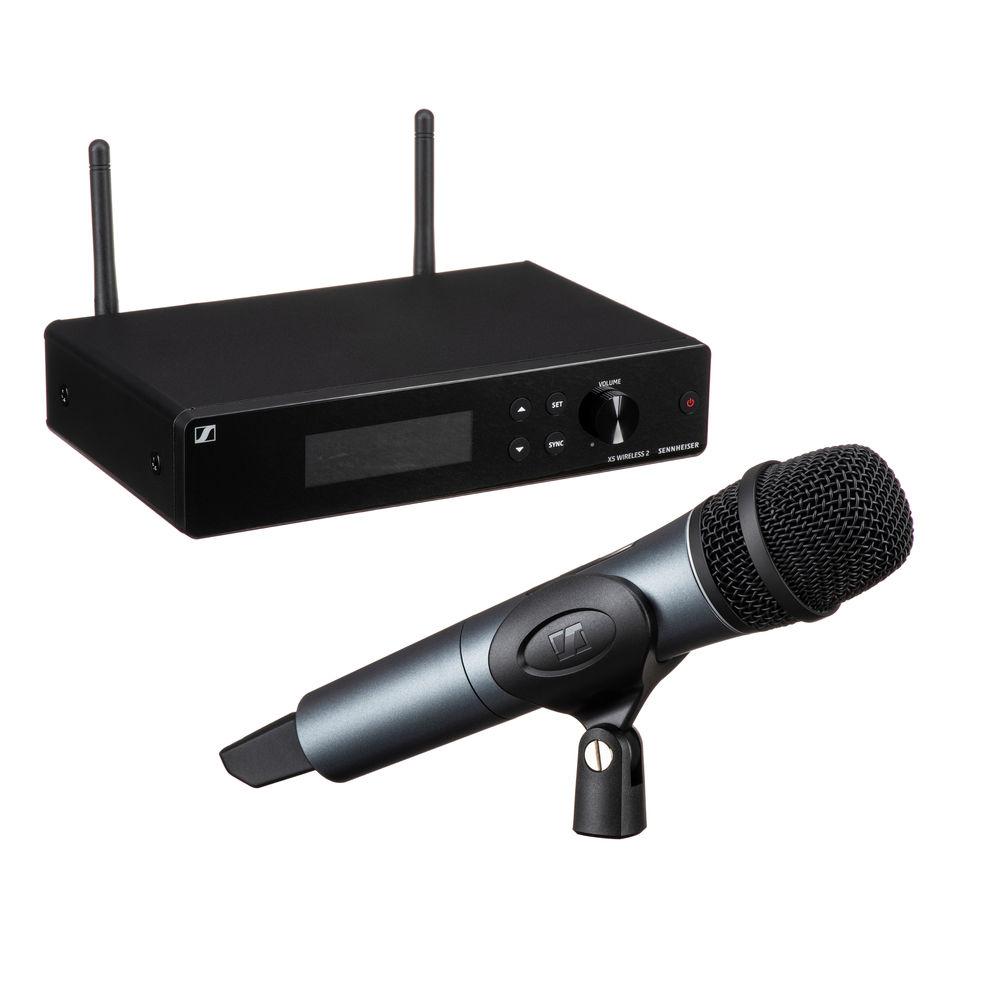

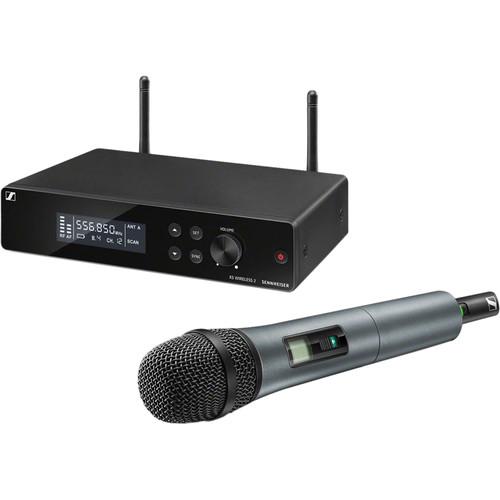

Sennheiser XSW 2: Wireless Rigs for Vocals and Instruments Alike Read More The XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters. The unit has automatic frequency management and synchronization so you don’t have to scramble to find an available channel. The transmitter’s e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.

True diversity receiver with metal housing

External antennas

Automatic frequency management and synchronization

Remote channel for easy setup

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

Up to 12 compatible channels

UPC: 615104279902 In the Box Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz)

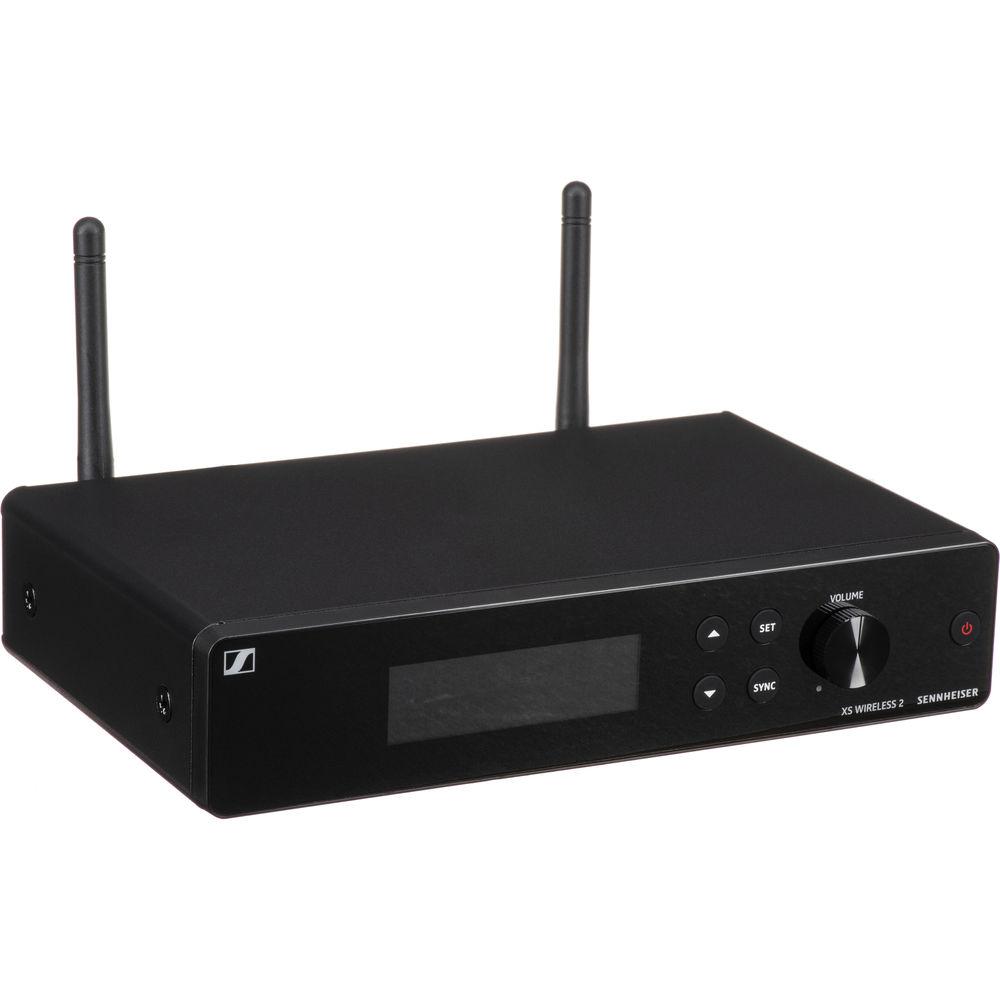

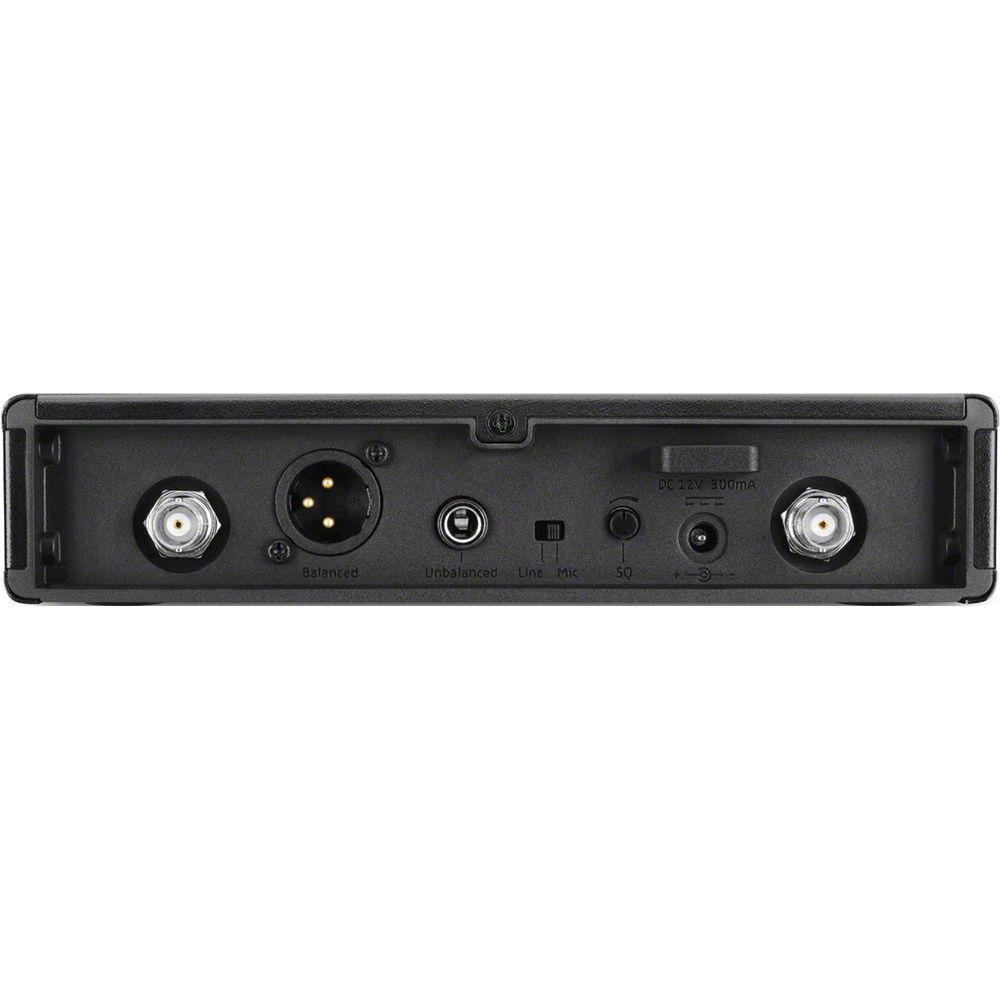

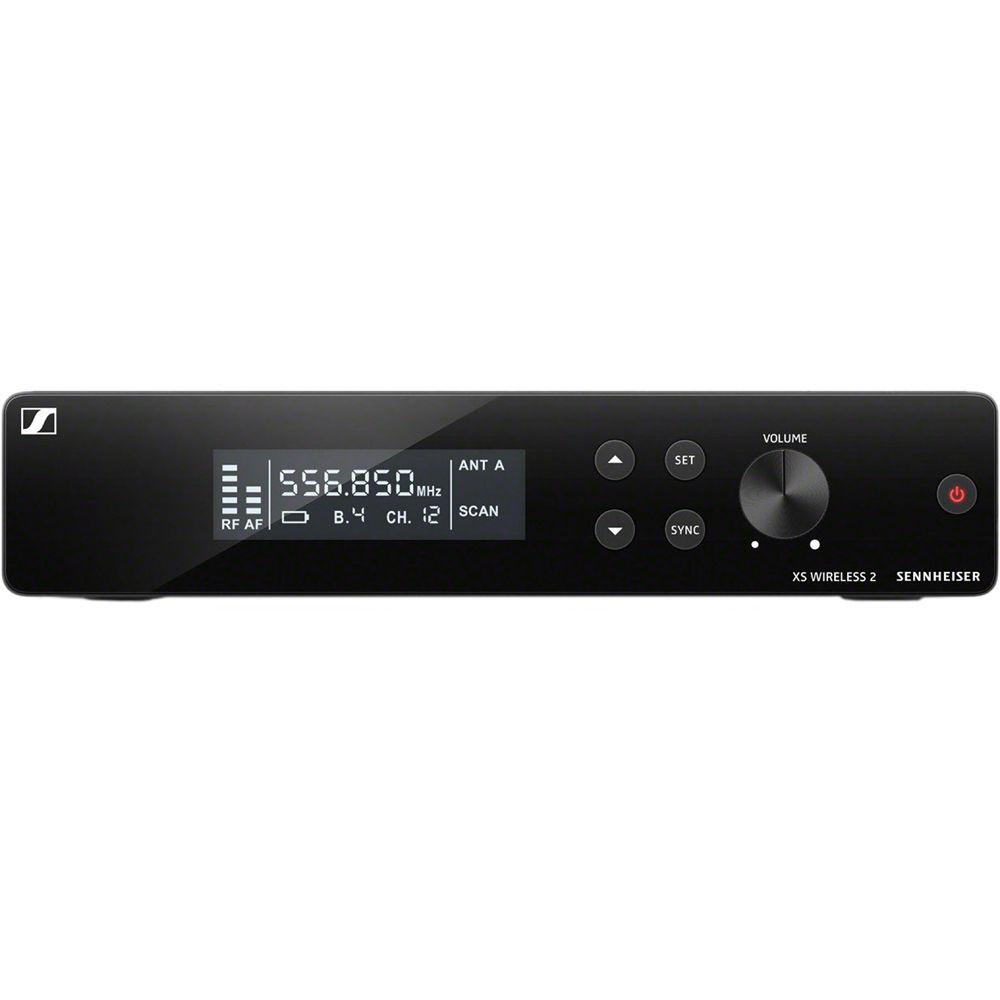

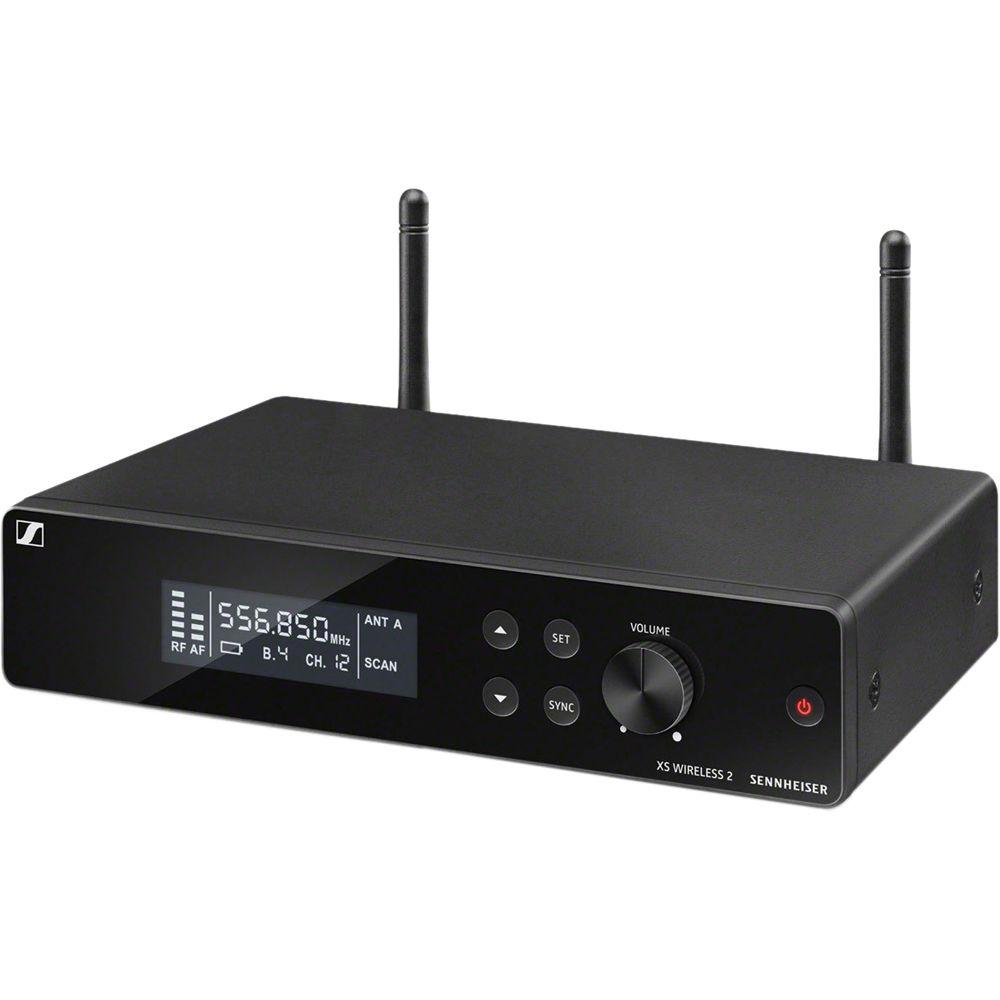

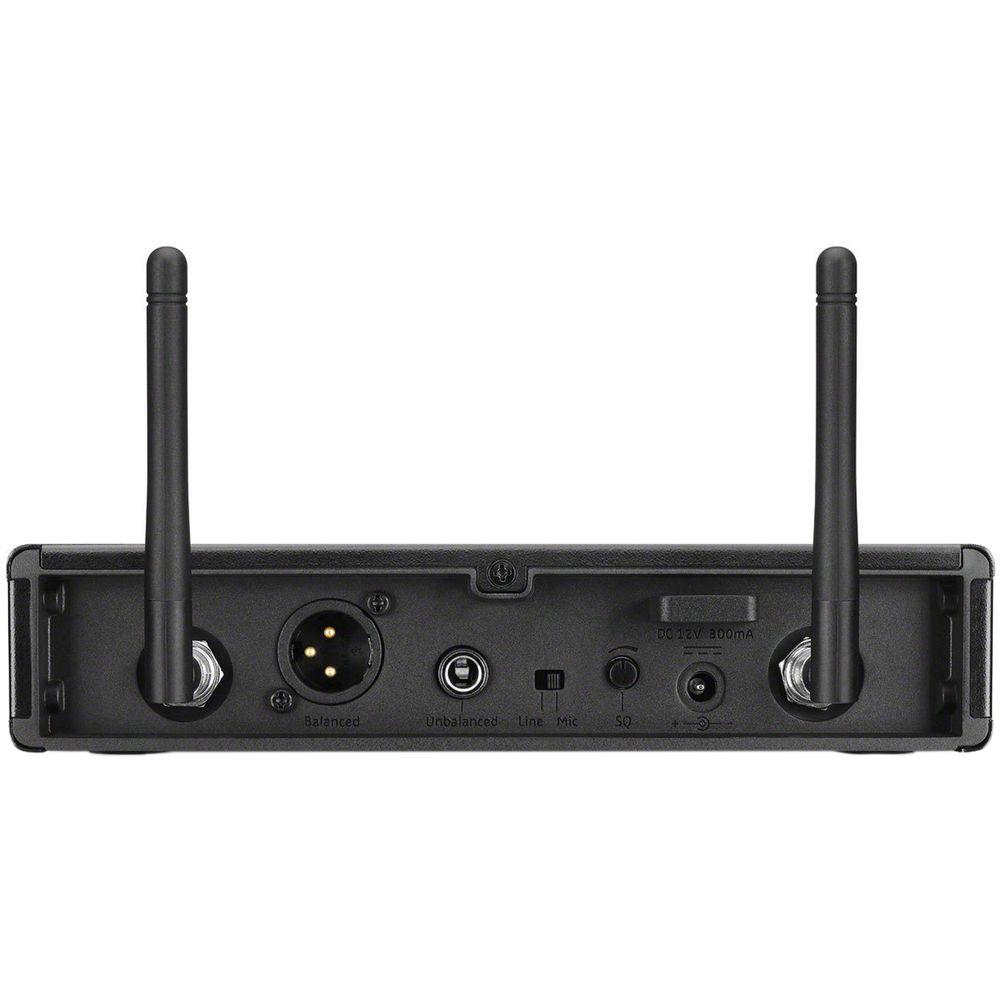

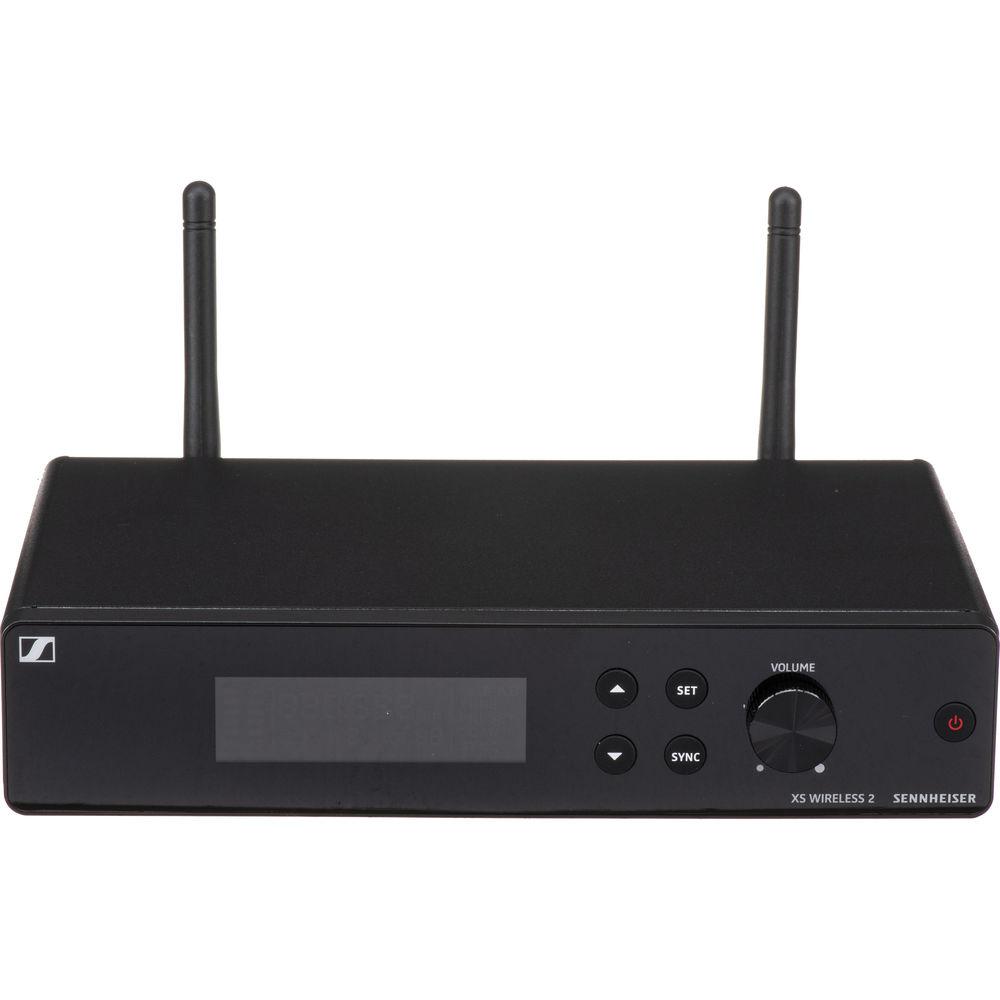

EM-XSW 2 Receiver

SKM 835-XSW Handheld Transmitter

MZQ1 Microphone Clamp cxxwbdfcwazrvasvuxeybzyrcdcwydcfqd

NT 12-5 CW Power Supply

Rackmount Kit

Protective Pouch

2 x AA Batteries

Limited 2-Year Warranty

Table of Contents

Upload User Manual

Have you got an user manual for the Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your «Submit Link» or «Upload File» will appear.

Please enter here the link to the user manual of this product:

Enter here the

file with the user manual of this product from your computer/phone:

(60MB max; Permitted formats: PDF)

Technical parameters

Sennheiser XSW 2-835-A Specs


Modulation	Wideband FM
Frequency Range	A: 548 to 572 MHz
Switching Bandwidth	Up to 24 MHz
Frequencies	Adjustable in 25-kHz steps 8 frequency banks, each with up to 12 factory-preset channels
Signal to Noise Ratio	≥ 103 dBA
Total Harmonic Distortion (THD)	≤ 0.9%
Temperature Range	Operation: 32 to 104°F (0 to +40°C) Storage: -4.0 to 158°F (-20 to +70°C)
Transmitter Synchronization	2.4 GHz, low power OQPSK (only active during synchronization)


Principle of Operation	Double superheterodyne
Diversity Method	True diversity
Sensitivity	< 3 µV at 52 dBA rms S/N at (peak deviation)
Frequency Response	50 Hz to 16 kHz (-3 dB)
Maximum AF Output Voltage	At peak deviation, 1 kHz AF 1/4″ (6.3 mm) Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu At peak deviation, 1 kHz AF)
Adjustment Range	Audio: 40 dB, adjustable in 5-dB steps
Power Supply	Nominal Input: 100 to 240 VAC 50/60 Hz Input Current: 200 mA (Max.) Nominal Output: 12 VDC 300 mA
Squelch	Adjustable from 3 dBμ V to 28 dBμ V (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Housing Material	Rugged metal housing
Dimensions (W x H x D)	7.9 x 1.7 x 5.0″ (200 x 42 x 127 mm)
Weight	24 oz (680 g)


RF Output Power	10 mW
AF Frequency Response	80 Hz to 16 kHz
Power Supply	2 x AA size batteries, 1.5 V
Operating Time	Approximately 10 hours
Microphone Type	Dynamic
Input Sensitivity	Capsule: 1.5 mV/Pa
Polar Pattern	Cardioid
Sensitivity Adjustment	Range: 0 to -30 dB, adjustable in 10-dB steps
Housing Material	Rugged ABS housing
Dimensions (L x Diam)	10.2 x 2.0″ (260 x 50 mm) approximate
Weight	8.6 oz (245 g) approximate


Package Weight	5.4 lb
Box Dimensions (LxWxH)	13.6 x 13.4 x 3.4″
